H-Fields

When we want to look at the magnetic fields, we choose quantity= h, or we specify as symbol eg. symbol= h_1:
 -3darrow
    quantity= h
    solution= 1, doit
    solution= 2, doit
    solution= 3, doit
The figure 3.2 shows the resulting desktop.

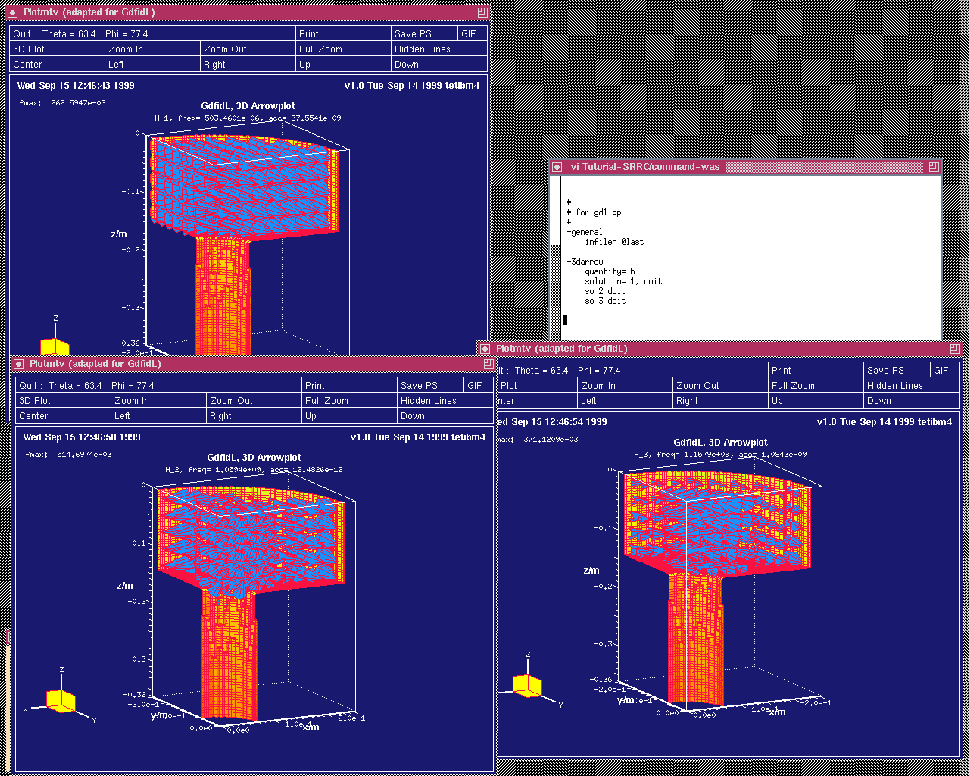

Figure 3.2: Screenshot of the desktop. gd1.pp has popped up three instances of mymtv2, showing the magnetic field of the first three modes.
